Luxury Bathroom & Wet Room Renovations in Oxford: Costs, Megaflo & Period Plumbing (2026)
The definitive architectural guide to renovating luxury master bathrooms, walk-in wet rooms, and ensuites in Oxford period homes. Unvented Megaflo hot water cylinders, joist structural reinforcement for stone baths, Schluter-KERDI tanking systems, low-profile linear drains, microcement vs porcelain, Building Regs Part G & P, and 2026 itemised costs.
Quick Answer: How Much Does a Luxury Bathroom or Wet Room Cost in Oxford?
In 2026, a bespoke luxury bathroom renovation in Oxford typically costs between £15,000 and £28,000 for a high-specification 4-piece family bathroom or master ensuite, and £28,000 to £45,000+ for a complete architectural wet room sanctuary featuring microcement or book-matched marble, unvented Megaflo mains pressure cylinder, structural joist sistering for a freestanding composite stone bath, and concealed brushed brass thermostatic brassware. In Victorian and Edwardian homes across North Oxford, Jericho, and East Oxford, success hinges on overcoming low gravity-fed water pressure (0.2–0.5 bar) with unvented Megaflo cylinders (3.0 bar mains pressure) and eliminating timber floor bounce with Schluter-KERDI waterproof tanking membranes.

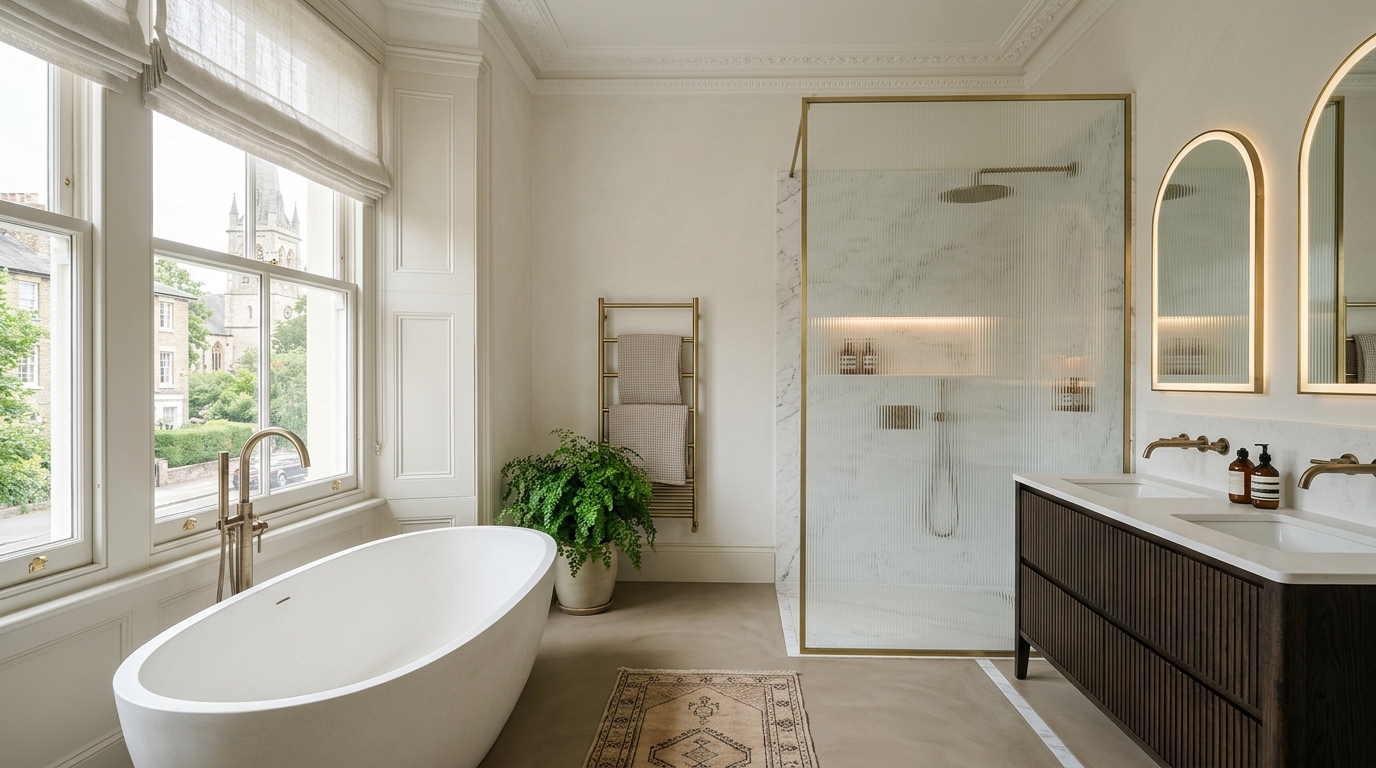

Bespoke master ensuite in a renovated Victorian residence in North Oxford (OX2): Freestanding stone bath beneath restored sash windows, curbless walk-in wet room with fluted glass, fluted oak double vanity, and concealed antique brass rainfall brassware.
Figure 1.0: Contemporary heritage wet room bathroom engineered over suspended timber joists with Schluter-KERDI tanking, Schluter-DITRA underfloor heating, and high-pressure unvented Megaflo hot water delivery.
1. The Oxford Period Bathroom Challenge: Low Water Pressure & Fragile Joists
Renovating a bathroom in an Oxford Victorian terrace (Jericho, St Clement's, Grandpont) or an expansive Edwardian villa (Summertown, North Oxford) is fundamentally different from fitting a bathroom in a modern timber-kit development. Beneath the historic plasterwork and decorative cornices lie severe mechanical and structural constraints that generic bathroom fitters frequently overlook:
The Low-Pressure Dribble (Gravity Systems)
Original Oxford plumbing systems rely on a cold-water storage header tank in the attic feeding a vented copper cylinder in an airing cupboard. Water pressure is dictated entirely by vertical head height (typically 0.2 to 0.5 bar on the first floor). When homeowners install a contemporary 300mm drench rainfall showerhead, water merely dribbles out. Installing a pump onto an old vented cylinder often causes air locks or burns out pump impellers.
450kg Point Loads on Suspended Timber Joists
Victorian 7"x2" (175x50mm) or 8"x2" pine floor joists were designed to support lightweight tin or thin cast-iron baths with dry weights under 60kg. A modern 1800mm composite stone or enamelled cast-iron roll-top bath weighs 140kg–180kg dry. When filled with 250 litres of water (250kg) and a 80kg bather, the concentrated point load exceeds 450kg–500kg—sufficient to cause severe ceiling sag, cracked tiles, and sheared pipe joints if joists are not structurally reinforced.
| Engineering Factor | Generic Bathroom Fitter Approach | Crawford Architectural Engineering Approach |
|---|---|---|
| Subfloor Preparation | Tiles directly onto old 18mm floorboards or thin chipboard (leads to cracked grout within 6 months). | Joists sistered with C24 timbers, solid noggins added, overlaid with 22mm marine plywood or HardieBacker cement boards. |
| Waterproofing & Tanking | Paint-on liquid rubber in shower corner only (water migrates behind tiles and rots joists). | Complete wet room tanking using Schluter-KERDI fleece membrane, taped corners, and sealed pipe collars (100% leak guarantee). |
| Water Pressure | Leaves gravity system unchanged or fits noisy plastic booster pump. | Upgrades to 2.5–3.5 bar unvented Megaflo stainless steel cylinder or whole-house accumulator system. |
| Drainage Gradient | Raised 100mm step/lip with plastic shower tray. | True curbless zero-threshold level walk-in former (Wedi/Impey) with concealed high-capacity linear channel drain. |
2. Solving Water Pressure in Period Homes: Unvented Megaflo Cylinders & Accumulators
A high-end luxury bathroom with a twin drench shower, body jets, and a deep soaking tub requires high volumetric water flow (minimum 22 to 35 litres per minute) delivered at stable pressure. Crawford's Gas Safe and G3-certified heating engineers engineer two primary solutions for Oxford period residences:
Solution A: Unvented Hot Water Cylinder (Megaflo / Joule System)
An unvented cylinder connects directly to the incoming cold water mains supply. Heated by a system boiler, heat pump, or electric immersion heaters, it operates under mains pressure (typically 2.5 to 3.5 bar). Hot water is pushed through the system at high velocity, providing invigorating rainfall shower performance even when someone runs the kitchen tap or dishwasher downstairs. Additionally, removing the cold water storage tank from the roof space frees up valuable attic area for loft conversions.
Solution B: Cold Water Accumulator Vessels & Stuart Turner Booster Pumps
In certain Oxford neighbourhoods (particularly historic streets in Jericho, Osney Island, and elevated portions of Headington), Thames Water mains static pressure can drop below 1.5 bar with peak flow rates under 14 L/min. An unvented cylinder cannot create flow if the street main is restricted. To solve this, Crawford installs a cold water accumulator vessel (250L to 450L) coupled with an ultra-quiet Stuart Turner brass regenerative pump. The accumulator stores cold mains water under a pressurized rubber diaphragm, instantaneously discharging up to 50 litres/minute on demand.
3. Engineered Wet Room Construction over Suspended Timber Floors
Walk-in curbless wet rooms represent the pinnacle of modern luxury interior design. However, constructing a level-access wet room on an upper floor with Victorian suspended timber joists requires strict precision engineering to avoid water leaks into rooms below:
Rebated Pre-Formed Gradient Dec (Wedi / Impey)
We never attempt to create wet room falls on timber floors by hand-screeding cement over joists. Instead, we install CNC-machined, high-density extruded polystyrene shower formers (such as Wedi Fundo Ligno or Impey Aqua-Dec). These boards feature a pre-formed 1:50 geometric fall towards the drain and are only 20mm–22mm thick at the perimeter, allowing them to be rebated flush with 22mm marine plywood subflooring for true zero-step entry.
Continuous Fleece Tanking Membrane (Schluter-KERDI)
Liquid paint-on tanking compounds become brittle over suspended timber floors and tear when joists naturally expand and contract with seasonal humidity. We apply Schluter-KERDI membrane—a soft polyethylene sheet with an anchored fleece on both sides. All corners and wall-floor transitions are reinforced with Schluter-KERDI-KEBA sealing bands bonded with waterproof sealant, creating an impermeable, elastomeric watertight tank.
High-Flow Linear Channel Drains (48+ L/min)
To prevent water pooling in open wet rooms, we specify architectural stainless steel or brass linear channel drains with flow capacities exceeding 48 litres per minute. Waste pipes are laid with a minimum 1:40 fall through notched joist zones or boxed below ceilings, incorporating dry-seal traps that prevent sewer gases from venting into the room during dry spells.
4. Wall & Floor Finishes: Microcement vs Large-Format Porcelain & Marble
Surface materials dictate both the visual luxury and the maintenance profile of your bathroom:
Seamless Microcement
A continuous 3mm polymer-modified mineral coating applied by trowel across floors, walls, and vanity countertops. Delivers a tactile, grout-free, minimalist aesthetic reminiscent of boutique hotels. 100% waterproof polyurethane sealer ensures effortless cleaning.
Large-Format Porcelain
Slabs measuring up to 1200x2400mm replicating Italian Calacatta marble, Belgian bluestone, or terrazzo. Requires diamond water-jet cutting and epoxy grout lines of only 1.5mm. Zero water absorption (porosity <0.05%) and supreme scratch resistance.
Handmade Zellige Tiles
Hand-chiseled Moroccan glazed clay tiles providing organic undulating reflections under ambient lighting. Ideal for feature vanity splashbacks or shower feature walls in historic North Oxford and Jericho period properties.
5. Heating, Ventilation & UK Building Regulations (Part G, P, and F)
Luxury bathroom installations must strictly adhere to UK statutory safety and energy standards:
Bathrooms are classified as special electrical zones. Low-voltage IP65-rated recessed downlights are installed over showers; shaver/toothbrush sockets are positioned 3m from water zones or fed via isolating transformers; electric underfloor heating is controlled via external digital thermostats.
Unvented hot water cylinders legally require commissioning by G3-certified engineers with pressure-relief tundishes ducted safely outside. Thermostatic mixing valves (TMVs) prevent water from exceeding 48°C to prevent scalding while preserving high volume.
Opening a sash window in November is ineffective and causes condensation mould. We install continuous in-line centrifugal fans (minimum 25–35 L/s) ducted through external walls with backdraught dampers and humidistat sensors, protecting timber cornices and joinery.
Any alteration to floor joists (such as notching for 110mm soil pipes or sistering timber beams for stone baths) must preserve structural load-bearing capacity under BS EN 1995-1-1 standards without weakening floor integrity.
6. 2026 Oxford Luxury Bathroom & Wet Room Cost Benchmarks (Itemised Guide)
Below are realistic, fully itemised 2026 price benchmarks for bathroom and wet room renovations across Oxford and Oxfordshire:
| Renovation Tier & Scope | Key Inclusions | Typical Cost Range (2026) | On-Site Duration |
|---|---|---|---|
Premium Family Bathroom High-spec 4-piece suite | Complete strip-out, porcelain tiling, vanity unit, concealed thermostatic shower, bath, and underfloor heating. | £15,000 – £22,500 | 2.5 – 3.5 weeks |
Master Ensuite Walk-In Wet Room Zero-step curbless sanctuary | Wedi/Impey gradient former, Schluter-KERDI tanking, fluted glass, linear drain, brushed brass brassware, and bespoke vanity. | £20,000 – £29,500 | 3 – 4 weeks |
Architectural Period Sanctuary Master suite + Megaflo system | Freestanding stone bath, joist sistering, Megaflo unvented cylinder, seamless microcement/marble, fluted oak double vanity, and LED niches. | £30,000 – £45,000+ | 4 – 5.5 weeks |
Itemised Cost Breakdown (Example: £28,500 Master Ensuite Wet Room):
7. Property Value Uplift & Master Suite ROI in Oxford
In Oxford's high-value residential market, adding or renovating a luxury master ensuite is widely recognized by local estate agents (such as Savills, Knight Frank, and Carter Jonas) as generating an exceptional return on capital:
Immediate Capital Equity Uplift
A premium master ensuite wet room adds approximately 4% to 7% to the overall market value of an Oxford property. On a £900,000 Victorian home in Walton Manor or Summertown, a 5% uplift equals £45,000 in immediate added equity—substantially exceeding the renovation investment.
Marketability & Buyer Decisiveness
Bathrooms and kitchens represent the two decisive emotional triggers for prospective buyers. A period home featuring flawless water pressure, zero-step walk-in showers, and bespoke joinery commands immediate premium offers and eliminates price renegotiations during structural surveys.
8. The Crawford Turn-Key Bathroom Process
Crawford Construction operates as a unified architectural design-and-build contractor, ensuring seamless project management from preliminary plumbing survey to final silicone bead:
Pressure & Structural Joist Survey
We measure dynamic water mains flow (L/min) and static pressure (bar), inspect floor joist depth and spans beneath floorboards, and map existing soil stack discharge routes.
Architectural 3D Cad & Sanitaryware Specification
Our interior design studio models your bathroom in photorealistic 3D, sourcing luxury brassware, freestanding stone baths, bespoke fluted oak vanities, and precision tile layouts.
Structural Framing, Megaflo & Schluter Tanking
We sister timber joists, install marine subfloors, commission unvented Megaflo cylinders, and apply complete Schluter-KERDI waterproof fleece membranes.
Fine Finishes, Testing & 10-Year Warranty
Our master tilers execute precision mitred tile edges or microcement coats, second-fix electrics and sanitaryware, and pressure-test every line before handing over Part P and Building Control certificates.
Frequently Asked Questions: Oxford Luxury Bathrooms & Wet Rooms
Expert guidance on water pressure, structural joist strengthening, Building Regs, and wet room tanking in Oxford period properties.
Design a Bespoke Luxury Bathroom or Wet Room with Crawford
From initial pressure testing and joist structural reinforcement through unvented Megaflo installation and 100% waterproof Schluter tanking, Crawford Construction delivers exquisite bathroom sanctuaries tailored to period Oxford homes.
Bathroom Feasibility Survey
Book a complimentary on-site survey with our lead mechanical plumbing engineer and interior designer. We test water pressure, inspect joists, and provide an itemised fixed-price quotation.
