Air Source Heat Pumps & Energy Retrofitting in Oxford Period Homes: Costs & Planning (2026)
The definitive architectural guide to retrofitting air source heat pumps (ASHP), low-temperature hydronic heating, breathable solid wall insulation, and EPC C upgrades in Oxford Victorian, Edwardian, and listed properties. Permitted Development noise standards (MCS 020), Oxford City Council Conservation Area approvals, the £7,500 Boiler Upgrade Scheme (BUS) grant, radiator sizing, and 2026 itemised costs.
Quick Answer: Can You Retrofit an Air Source Heat Pump to an Oxford Period Home?
Yes, an Air Source Heat Pump (ASHP) can successfully heat an Oxford Victorian, Edwardian, or Georgian solid brick home—provided a professional "fabric-first" low-temperature design is implemented. In 2026, an MCS-certified heat pump system in Oxford costs £11,500 to £16,500 gross, but the UK Government's active £7,500 Boiler Upgrade Scheme (BUS) grant reduces net homeowner cost to just £4,000 to £9,000. Running at lower flow temperatures (35°C–45°C) yields seasonal efficiencies (SCOP) above 3.5. Success in Oxford period properties requires room-by-room heat loss calculations (BS EN 12831), upgrading emitters (oversized Type 22 radiators or hydronic underfloor heating), installing a 250L unvented heat pump cylinder, and applying breathable internal wood-fibre insulation (Steico). Heat pumps fall under Class G Permitted Development provided they meet the MCS 020 sound limit (≤42 dB(A)) and are positioned away from public highway view in Oxford Conservation Areas.

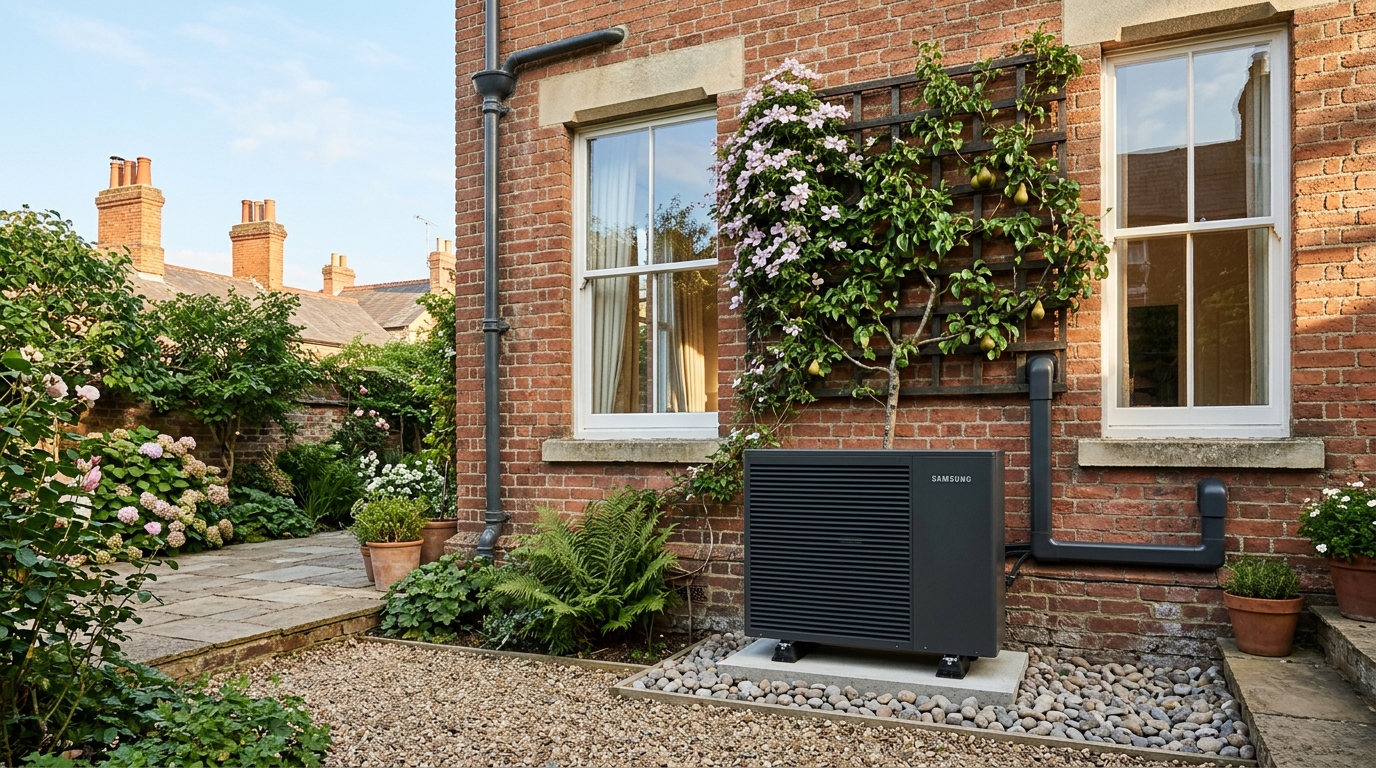

Bespoke eco-retrofit in North Oxford (OX2): Ultra-quiet anthracite monobloc air source heat pump installed on an anti-vibration concrete plinth bordered by Scottish river pebbles against weathered historic red brickwork.
Figure 1.0: Contemporary monobloc air source heat pump (ASHP) integrated seamlessly into an Oxford period home's side courtyard, operating at 35°C water flow to power ground-floor hydronic underfloor heating.
1. The "Heat Pumps Don't Work in Old Houses" Myth: The Physics of Flow Temperatures
There is a persistent misconception among Oxford homeowners that air source heat pumps are only suitable for brand-new timber-frame homes. The truth is that heat pumps can heat any building regardless of age—provided the heating system is engineered around the physics of low-temperature thermodynamic heat transfer.
Traditional gas boilers operate like an on/off blast furnace, dumping water heated to 65°C–75°C into undersized radiators in short cycling bursts. By contrast, an Air Source Heat Pump operates continuously and quietly at gentle flow temperatures between 35°C and 45°C.
Efficiency is governed by the Seasonal Coefficient of Performance (SCOP). The lower the water flow temperature, the less electrical energy the compressor expends lifting heat from outside air into your heating circuit:
| System Type & Operating Mode | Flow Temperature | Efficiency (COP / SCOP) | Annual Carbon Footprint | £7,500 BUS Grant Eligible? |
|---|---|---|---|---|
| Standard Condensing Gas Boiler | 65°C – 75°C | 88% – 92% (burns fossil gas) | 2,800 – 3,600 kg CO₂ | No (Phase-out initiated) |
| High-Temp Heat Pump (Uninsulated) | 60°C – 65°C | SCOP 2.2 – 2.5 (220%–250%) | 1,100 – 1,400 kg CO₂ | Yes (£7,500 grant) |
| Crawford Fabric-First Low-Temp ASHP | 35°C – 42°C | SCOP 3.8 – 4.2 (380%–420%) | 600 – 850 kg CO₂ (-75%) | Yes (£7,500 grant) |
2. The "Fabric-First" Envelope: Insulating Oxford Solid Brick Walls Safely
Before sizing a heat pump, Crawford conducts a comprehensive room-by-room heat loss survey under BS EN 12831 standards. To drop heat loss and enable low flow temperatures without damaging historic building fabric, we employ breathable insulation systems:
Wood-Fibre IWI Insulation
Never apply foil-backed PIR boards (Kingspan/Celotex) to solid 9-inch Victorian walls, as they trap interstitial moisture and rot timbers. We install 40mm–60mm Steico breathable wood-fibre boards bonded with hydraulic lime adhesive and finished in lime plaster, dropping wall U-values from 2.1 down to 0.40 W/m²K while preserving complete vapour breathability.
Suspended Timber Floors
Suspended ground floors leak massive amounts of cold air. We lift perimeter floorboards, install breathable wind-tight membrane nets between joists, and pack them with breathable mineral wool or Thermafleece British sheep's wool, eliminating icy drafts while maintaining unobstructed underfloor air brick cross-ventilation.
FINEO Vacuum Glazing
Replacing historic sash windows destroys period character and is rejected in Oxford Conservation Areas. We retrofit ultra-slim FINEO vacuum-insulated glass (only 7.7mm thick) directly into original timber sash rebates, achieving a triple-glazed U-value of 0.7 W/m²K with zero visual distortion.
3. Heat Emitter Optimization: Underfloor Heating & Oversized Radiators
Because water circulates at 35°C–45°C rather than 70°C, heat emitters must feature a larger surface area to deliver the same BTU heat output into the room:
Ground-Floor Hydronic Underfloor Heating (UFH)
When homeowners commission an open-plan rear extension or side return extension, pairing it with hydronic underfloor heating is the gold standard. UFH turns the entire floor area into an expansive radiant heat emitter, allowing the heat pump to operate at its absolute maximum seasonal efficiency (SCOP 4.0–4.5 at 35°C flow).
Upper Floor Radiators: Type 22 Upgrades & Aluminum Low-H2O
On upper bedroom floors with original timber floorboards, replacing existing single-panel (Type 11) radiators with high-output Type 22 double convector radiators or low-water-content aluminum radiators increases heat emitter surface area by 100%–150%. Because the radiator is twice as deep, it delivers full room heating at 45°C flow without needing to be physically wider on the wall.
Dedicated 250L–300L Heat Pump Hot Water Cylinder
Standard domestic hot water cylinders have a small 1m² internal heating coil designed for 70°C boiler water. Heat pumps require a specialist high-efficiency unvented cylinder featuring a massive 2.8m² to 3.3m² corrugated stainless steel heat exchanger coil. This allows the heat pump to reheat 250–300 litres of mains-pressure domestic hot water to 52°C in under 45 minutes, with a weekly automated anti-legionella sterilisation cycle.
4. Planning Permission, Noise Rules (MCS 020) & Oxford Conservation Areas
In Oxford, installation of an outdoor air source heat pump is governed by strict statutory acoustic and planning frameworks:
Statutory Permitted Development Checklist (GPDO Part 14, Class G):
- 18 Designated Conservation Areas: In North Oxford Victorian Suburb, Jericho, Walton Manor, and Headington Hill, Permitted Development applies provided the heat pump is not visible from the public highway. Units must be sited in rear gardens or concealed side passages behind acoustic timber trellising.
- Grade II & Grade I Listed Buildings: Permitted development rights do NOT apply. Formal Listed Building Consent is mandatory. Crawford prepares detailed acoustic calculations, vibration-isolation plinth specifications, and runs insulated refrigerant pipework through existing cellar chutes or mortar joints to avoid altering historic stonework.
5. The £7,500 Boiler Upgrade Scheme (BUS) Grant & Running Costs
To accelerate domestic decarbonisation, the UK Government offers the Boiler Upgrade Scheme (BUS)—providing homeowners with a non-repayable £7,500 voucher towards the supply and installation of an MCS-certified Air Source Heat Pump.
How Crawford Processes Your £7,500 BUS Grant:
Direct Invoice DeductionYou do not need to pay the £7,500 upfront and wait months for a rebate. As an accredited MCS installer, Crawford Construction applies directly to Ofgem on your behalf. The £7,500 is deducted immediately from your final invoice. Eligibility requires:
- You are replacing an existing fossil fuel heating system (mains gas boiler, oil boiler, or direct electric storage heaters).
- The property has a valid Energy Performance Certificate (EPC) issued within the last 10 years without outstanding recommendations for loft or cavity wall insulation (if outstanding, Crawford completes loft insulation prior to sign-off).
- The heat pump system is designed and commissioned to deliver 100% of the property's peak space heating and domestic hot water demand.
6. 2026 Oxford Heat Pump & Retrofit Cost Benchmarks (Itemised Guide)
Below are realistic, fully itemised 2026 price benchmarks reflecting turnkey mechanical engineering and architectural eco-retrofit installations across Oxfordshire:
| Retrofit Package & Home Type | Key Inclusions | Gross Cost (2026) | Net Cost (After £7.5k Grant) |
|---|---|---|---|
ASHP Direct Replacement Modern semi or insulated terrace | 7kW–9kW monobloc ASHP, electrical isolator, concrete plinth, anti-freeze valves, and buffer tank. | £11,500 – £14,500 | £4,000 – £7,000 |
Complete Heating Overhaul Victorian terrace (Jericho / East Oxford) | 10kW ASHP, 250L unvented cylinder, 7–10 oversized Type 22 radiators, smart heating controls, and flushing. | £17,500 – £22,500 | £10,000 – £15,000 |
Whole-House Eco-Retrofit 4-bed North Oxford villa / semi | 12kW ASHP, ground-floor hydronic UFH (50m²), wood-fibre IWI on north walls, 300L cylinder, and vacuum glazing. | £32,000 – £48,000 | £24,500 – £40,500 |
Itemised Component Breakdown (Example: 10kW System):
7. EPC Ratings, Property Value Uplift & Oxford Landlord Compliance
In Oxford's premium housing market, energy efficiency is no longer an afterthought—it directly impacts property valuation and rental yields:
3% to 6% Property Valuation Uplift
RICS property market data shows that lifting a home from an EPC rating of Band E or D to Band C or B increases resale value by 3% to 6% (adding £25,000 to £50,000 to an £800,000 Oxford family house). Buyers actively avoid properties with outdated gas boilers facing imminent replacement costs.
Oxford Landlord MEES Compliance
With proposed UK Government regulations tightening Minimum Energy Efficiency Standards (MEES) to EPC Band C for all domestic private tenancies by 2030, landlords operating in Oxford's lucrative student and academic rental markets face financial penalties unless properties are retrofitted with heat pumps and breathable insulation.
8. The Crawford Turn-Key Eco-Retrofit Process
Crawford Construction delivers integrated architectural and mechanical engineering under a single fixed-price contract:
Comprehensive Room-by-Room Heat Loss Survey
We model your home's thermal performance in 3D under BS EN 12831, calculate exact kilowatt requirements at -3°C Oxford design temperatures, test dynamic water pressure, and check DNO electrical fuse capacity.
Planning Screening & MCS 020 Sound Assessment
We calculate decibel sound attenuation to neighbouring boundary lines, verify Permitted Development compliance, and manage Listed Building Consent applications where required.
Emitter Upgrades & Cylinder Installation
Our plumbers install hydronic underfloor heating or oversized radiators, install the 250L unvented cylinder, and connect high-temperature copper distribution lines.
Outdoor ASHP Commissioning & £7,500 Grant Sign-Off
We pour the anti-vibration concrete plinth, mount the heat pump, commission the digital weather compensation controls, claim your £7,500 BUS voucher directly from Ofgem, and issue your 10-year warranty pack.
Frequently Asked Questions: Air Source Heat Pumps in Oxford
Detailed answers to common questions regarding heat pump performance, noise levels, planning rules, and running costs in Oxford period homes.
Claim Your £7,500 Heat Pump Grant with Crawford Construction
From room-by-room heat loss calculations and MCS 020 sound assessments through underfloor heating installation and Ofgem grant processing, Crawford delivers turn-key low-carbon heating engineered for period Oxford properties.
Heat Pump Feasibility Survey
Book an on-site feasibility survey with our lead mechanical engineer. We calculate heat losses, check radiator sizing, verify £7,500 BUS grant eligibility, and provide an itemised fixed-price quotation.
